A comparison between Sim4 with different background levels

* Attitude file Sim3 (typical depth 2.9ks, 127 deg2 ) vs Sim4 (typical depth 2.2ks, 144 deg2 )

[ATTACH] [ATTACH]

Below compares Sim3,PipelineV7 (left), Sim3,V8 (middle) and Sim4,V9 (right):

* Note: Essential parameters were changed between Pipeline V7 and V8 to improve point-source detection efficiency. But they remain the same between V8 and V9.

* Input -- output fluxes

[ATTACH] [ATTACH] [ATTACH]

* Input -- output counts

[ATTACH] [ATTACH] [ATTACH]

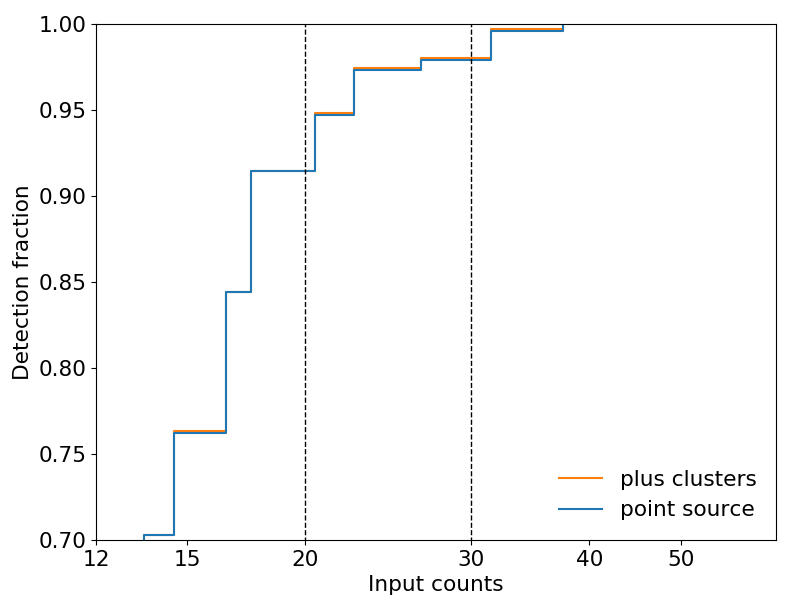

* Detection fraction as a function of input counts

[ATTACH] [ATTACH] Sim4,detection fraction

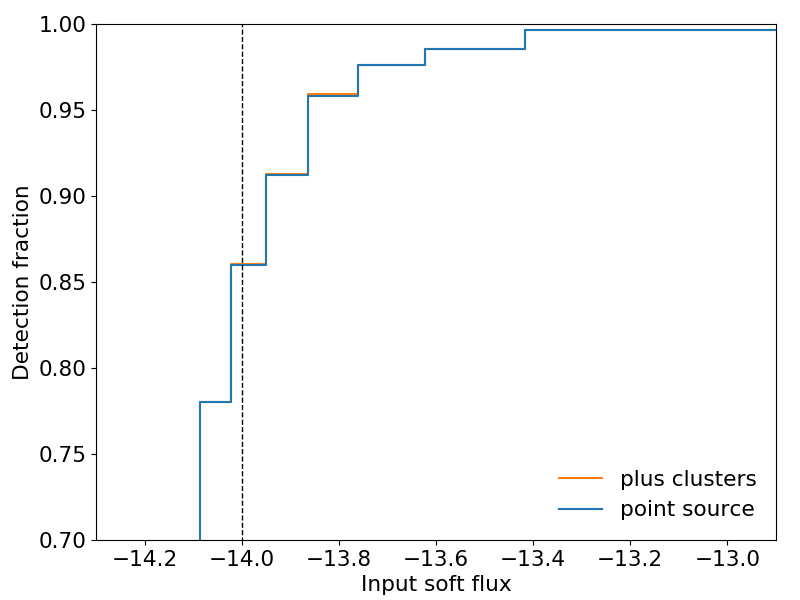

* Detection fraction as a function of input fluxes

[ATTACH] [ATTACH] Sim4,detection fraction

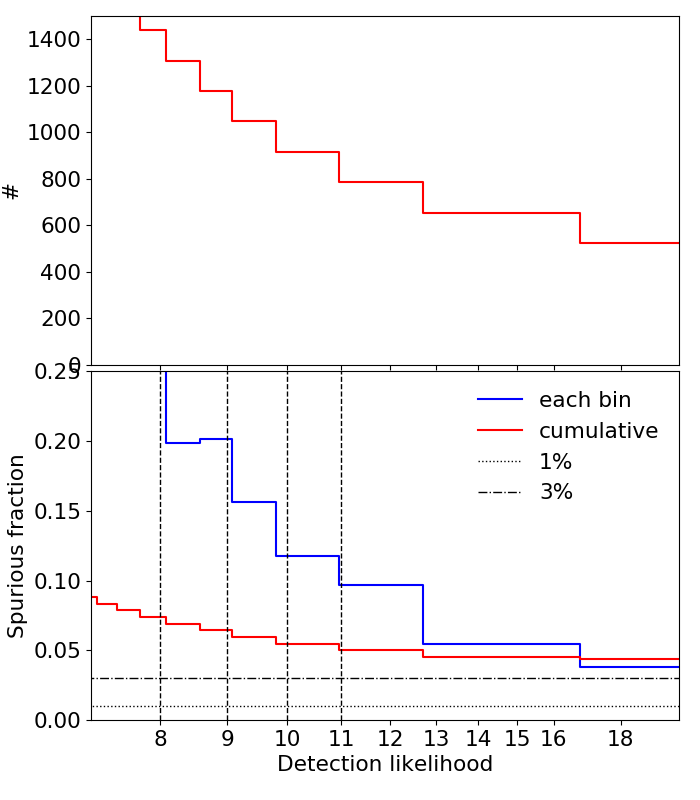

* Spurious fraction

[ATTACH] [ATTACH] Sim4,spurious fraction

* logN-logS based on ersensmap (Sim3,V8)

[ATTACH]
